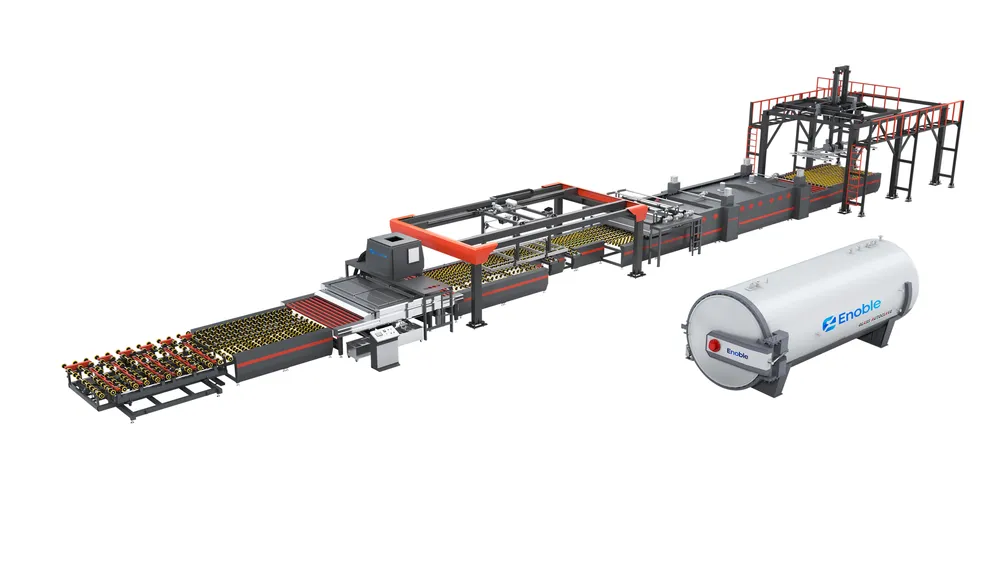

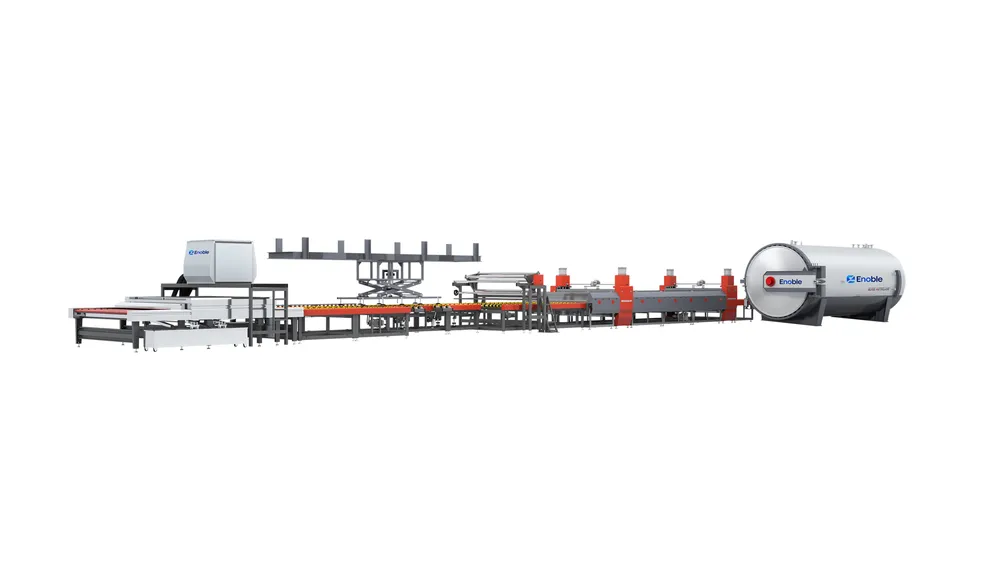

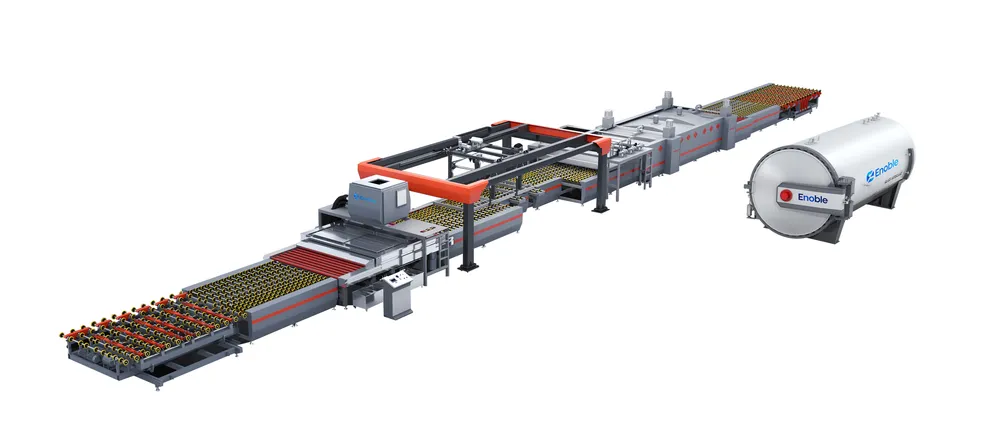

The Enoble Laminated Glass Production Line and Autoclave combines upstream laminated glass preparation with EN-DN autoclave curing for PVB and SGP safety glass production. The catalog production line covers loading, washing and drying, precision positioning, combining, film handling, transition conveying and roller pressing.
For the autoclave section, the EN-DN model range supports inner diameters from 2100 mm to 3800 mm, listed maximum glass sizes up to 3400 x 8000 mm, and catalog maximum process limits of 1.5 MPa and 160 C.
The product page now separates the laminated glass production line workflow from the autoclave sizing table, so buyers can check both line function and curing capacity before requesting a quotation.
| Catalog Station | Function in Production |
|---|---|
| Automatic loading machine | Feeds glass sheets onto the laminated glass production line. |
| Multi-functional washing and drying machine | Cleans and dries glass surfaces before interlayer assembly. |
| High-precision positioning conveyor | Aligns glass accurately before combining. |
| Double-station combining machine | Supports PVB / SGP interlayer assembly and glass combining. |
| Movable suction-cup hanger | Assists handling and transfer during laminated glass preparation. |
| Horizontal 3-roller film storage | Stores and buffers interlayer film for continuous operation. |
| Frequency-conversion transition conveyor | Coordinates transfer speed between production sections. |
| Model | Inner Diameter | Autoclave Length | Max Glass Size | Max Pressure | Max Temperature | Heating Power |
|---|---|---|---|---|---|---|
| EN-DN2100 | 2100 mm | 6000 mm | 1700 x 6000 mm | 1.5 MPa | 160 C | 160 kW |
| EN-DN2600 | 2600 mm | 6000 mm | 2200 x 6000 mm | 1.5 MPa | 160 C | 180 kW |
| EN-DN2860 | 2860 mm | 6000 mm | 2440 x 6000 mm | 1.5 MPa | 160 C | 228 kW |
| EN-DN3000 | 3000 mm | 6000 mm | 2600 x 6000 mm | 1.5 MPa | 160 C | 280 kW |
| EN-DN3200 | 3200 mm | 8000 mm | 2800 x 8000 mm | 1.5 MPa | 160 C | 310 kW |
| EN-DN3600 | 3600 mm | 8000 mm | 3200 x 8000 mm | 1.5 MPa | 160 C | 360 kW |
| EN-DN3800 | 3800 mm | 8000 mm | 3400 x 8000 mm | 1.5 MPa | 160 C | 400 kW |
The line and autoclave are configured for repeatable laminated glass preparation, interlayer assembly and pressure-temperature curing. The items below are taken from the catalog features and rewritten as buyer-facing selection points.
Siemens PLC, Delta drives and three HMI operator interfaces support coordinated operation across loading, washing, combining and conveying sections.
Encoders, servo motors and high-precision positioning help maintain alignment during laminated glass assembly.
The double-station combining machine and horizontal 3-roller film storage support PVB and SGP preparation before autoclave processing.
Forced convection uses up-down and front-back circulation to support more even temperature distribution inside the chamber.
PID-controlled temperature and pressure with programmable curve control helps match different laminated glass process requirements.
The catalog lists door and chamber safety interlock protection for autoclave operation.
| Parameter | Catalog Value | Buyer Relevance |
|---|---|---|
| Operating Temperature | 120-135 C | Reference curing temperature range for laminated glass production. |
| Operating Pressure | 1.3 MPa | Reference pressure used for autoclave laminated glass processing. |
| Program Control | PID program control | Supports controlled pressure-temperature curve management. |
| Interlayer Materials | PVB / SGP | Matches common safety glass and structural laminated glass applications. |
| Glass Types | Flat and curved laminated glass | Supports a broader laminated glass product mix. |
Machine in Action
See selected Enoble Glass videos showing laminated glass processing, autoclave production views and operating references. These videos help buyers understand how the line and autoclave support stable laminated glass production.
For architectural laminated safety glass where stable line preparation and autoclave curing are required.
For projects using structural interlayers that require controlled autoclave pressure and temperature.
The catalog lists curved glass among autoclave applications.
The catalog lists bulletproof glass as one of the application directions for the autoclave.
For related laminated glass equipment, compare the glass laminating oven, PVB and EVA laminating interlayers and the laminated glass production solution.
| Project Input | What to Confirm |
|---|---|
| Maximum glass size | Match the largest product size to the EN-DN autoclave inner diameter and length table. |
| Interlayer material | Confirm whether the project uses PVB, SGP or another laminated glass build-up. |
| Production workflow | Confirm loading, washing, positioning, combining, film handling and roller pressing requirements. |
| Process recipe | Confirm curing curve, operating pressure and operating temperature for the actual glass structure. |
| Factory layout | Check line length, autoclave position, transfer path, utility supply and maintenance access. |
The catalog line includes automatic loading, washing and drying, high-precision positioning, double-station combining, suction-cup handling, film storage and frequency-conversion transition conveying.
EN-DN3800 lists the largest glass size in the catalog table: 3400 x 8000 mm.
The catalog lists operating pressure at 1.3 MPa and operating temperature at 120-135 C. Maximum model limits are 1.5 MPa and 160 C.
Yes. The catalog lists PVB lamination and SGP lamination applications for the laminated glass autoclave.
